Ointment Filling Machine, Ointment Tube Filling Machine, Grease Tube Filling Machine, Paste Tube Filling Machine


Product Detail

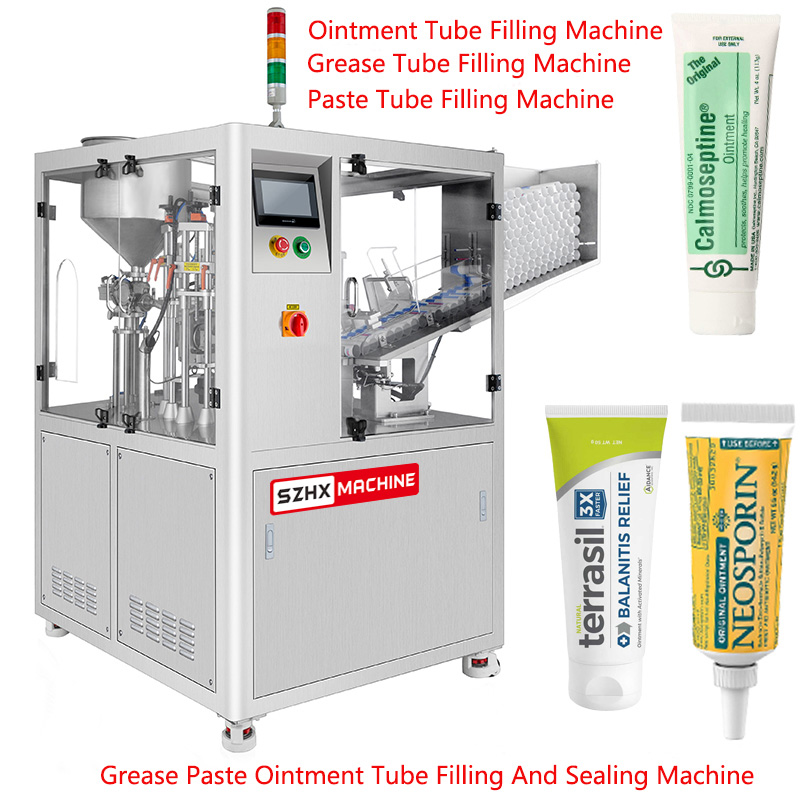

Automatic Ointment Filling Machine, Ointment Tube Filling Machine, Grease Tube Filling Machine, Paste Tube Filling Machine ointment-filling-machine

Features:

  • Machine could automatically finish tube feeding, registration mark identifying, filling, sealing with coding, end trimming, tube out feeding, fully automatic, save labor cost and lower production cost.
  • Machine is equipped with safety protection device and overload protection.
  • Cam indexing system could position precisely for ten working stations.
  • Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
  • Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
  • PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem and solve immediately.
  • Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.
  • No tube, no fill, no tube, no seal function, reducing the machine and mould loss.
  • Adopts Anti-dripping filling nozzle.
  • Low power consumption as ultrasonic parts has high conversion rate of electrical energy to thermal energy.

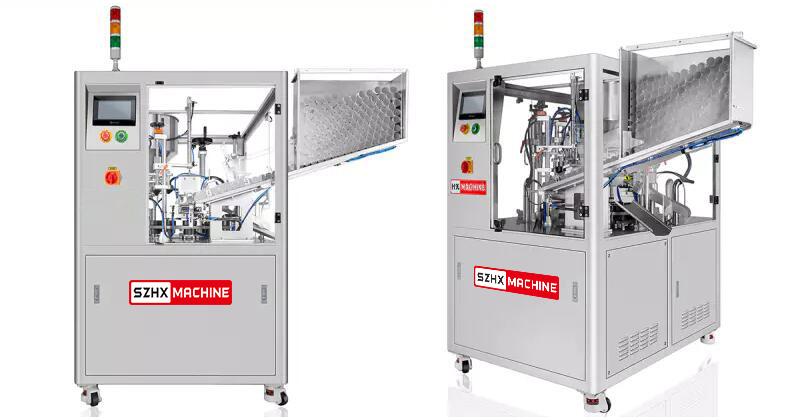

Read this article for more information. auto-009S-005H-0022

Application:

Widely used for food, Pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing. Ointment or paste: toothpaste, tomato paste, wasabi paste, chocolate paste, mayonnaise paste, chili paste, food paste. Toothpaste Filling Machine 002

Specification

Technical parameter

 https://www.szhxmachine.com/products/hx-009s-double-tube-fully-automatic-ultrasonic-tube-filling-and-sealing-machine.html  HX-009  https://www.szhxmachine.com/products/hx-005h-strip-monodose-tube-filling-and-sealing-machine.html
Model HX-009S HX-009 (The model you are browsing) HX-005H
Auto/Semi-Auto Fully automatic Fully automatic Fully automatic
Function Filling and sealing Filling and sealing Filling and sealing
Safety Protection Safety device equiped Overload protection Overload protection Safety device equiped Overload protection
Station Ten stations (rotary table) Ten stations (rotary table) Servo motor driven chain type
Anti-Driping Filling Anti-dripping Filling nozzle Anti-dripping Filling nozzle /
Tube Type Dual-chamber tube Single tube Strip monodose vials tubes
Tube Material Plastic tube ABL tube Plastic tube ABL tube PE Plastic PP Plastic
Color Mark System Panasonic Color Mark Sensor Panasonic Color Mark Sensor /
Tube Outlet Detection Discharge check alarm system Discharge check alarm system /
Fault Alram Failure warning feature Failure warning feature Failure warning feature
Frequency 20 kHz 20 kHz 20 kHz
Power 2.6 KW 2.6 KW 2.6 KW
Power Supply AC220V/110V AC220V/110V AC220V/110V
Filling System Pneumatic piston pump Pneumatic piston pump 5 heads Valveless Ceramic Plunger Pump (liquid) 5 heads Rotary Valve Ceramic Plunger Pump (paste)
Filling Range A. 10-120 ml B. 25-250 ml A. 6-60 ml B. 10-120 ml C. 25-250 ml D. 50-500 ml 0.3-10 ml Valveless Ceramic Plunger Pump 1-10 ml Rotary Valve Ceramic Plunger Pump
Filling Error ≤±1% ≤±1% ≤±1%
Capacity 8-13 pcs/min 22-28 pcs/min 15-20 monodose/min
Tube Diameter 25-50 mm 13-50 mm 1-7 monodoses/length 140 mm
Tube Height 50-210 mm 50-250 mm 50-120 mm
Working Pressure 0.6 MPa 0.6 MPa 0.4 MPa
Air Comsumption 0.48m3/min 0.38m3/min 0.2m3/min
Dimension (mm) L1850*W1400*H1800 L1590*W1400*H1650 L1300*W1300*H1950
N.W/G.W 504 kgs 424 kgs 420 kgs
Option
  1. Auto refill pump
  2. Double jacket heating hopper with stirrer
  3. Filling nozzle with air blow
  4. 316 stainless steel contact parts
  5. Saftey door function
  1. Auto refill pump
  2. Double jacket heating hopper with stirrer
  3. Filling nozzle with air blow
  4. 316 stainless steel contact parts
  5. Saftey door function
  6. Pressurer hopper
  7. Date coding
Finish products conveyor
Automatic Tube Filling Machine, Tube Filling and Sealing Machine Manufacturers, Tube Filler and Sealer Machine
MAIN PART LIST
Ultrasonic System Automatic Frequency Tracing
Benchmarking Electric Eye Panasonic, Japan
PLC Mitsubishi, Japan
Electric Relay Omron, Japan
Touch Panel WEINVIEW,China Taiwan
Inductive Switch SICK, Germany
Air Cylinder AirTAC,China Taiwan
Solenoid Valve AirTAC,China Taiwan
Motor ZhongdaMotor CN
Partitioner JOUDER,China Taiwan
Frequency Converter DELTA,China Taiwan
Stepper Motor Leadshine,CN
Toothpaste-Filling-Machine-003 Automatic Toothpaste Filling Machine, Toothpaste Tube Filling Machine, Toothpaste Tube Sealing Machine Note: We don't provide emulsifying machine. This machine cannot make filling materials by itself. If you need, we could help you to contact manufacturer of emulsifying machine.
