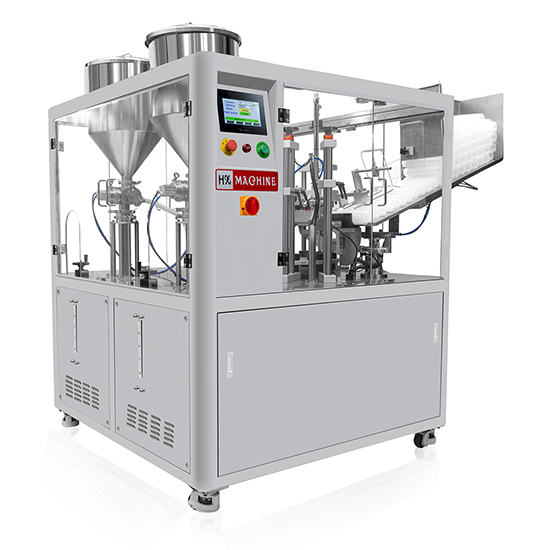

HX-009S Double Tube Fully Automatic Ultrasonic Tube Filling and Sealing Machine


Product Detail

HX-009S Machine Running Video

Features

  • Machine can automatically process dual chamber tube feeding, auto rotate to fill outer tube, registration mark identifying, filling inner tube, sealing, end trimming, tube out feeding. The machine is fully automatic and can save labor cost and lower production cost as well as provide possibility of creative two formular products.
  • Machine is equipped with safety protection device and overload protection.
  • Cam indexing system could position precisely for ten working stations.
  • Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
  • Independent R&D for digital ultrasonic automatic tracking electrical control box. No need manual adjust the frequency. With power auto compensation function, the machine can avoid the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
  • PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen and locate, solve the problem immediately.
  • Made of 304 stainless steel, acid and alkali resistance, corrosion resistance.
  • No tube, no fill, no tube, no seal function, reducing the machine and mould wear.
  • Adopts anti-dripping filling nozzle.
02 03

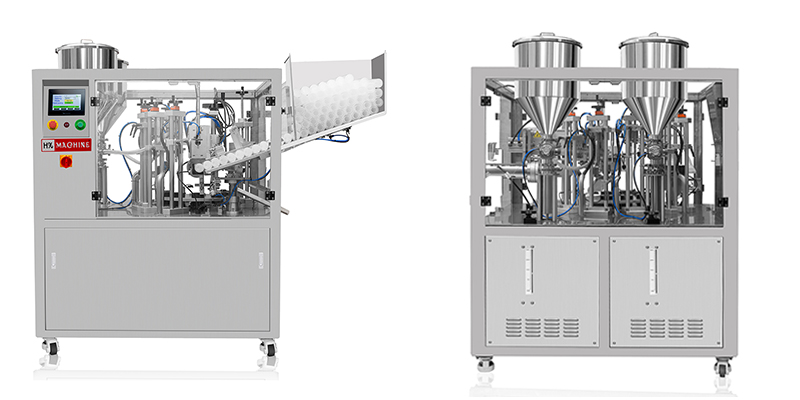

HX-009S Front and Left Side View

009s-drawing

HX-009S Drawing and Dimension

Machine Parameters
Model HX-009S
Frequency 20kHz
Power 2600W
Power supply AC220V/110V
Filling Range B.10-120ml C.25-250ml
Filling accuracy ±1g
Capacity 8-13pcs/min
Tube diameter 25-50mm
Tube height 100-210mm
Working pressure 0.6 MPa
Size L1850*W1400*H1800
N.W/G.W 504kgs
anli-zhanshi-002 anli-zhanshi-002

Suitable for dual chamber tubes which have tube in tube

Main part list:
Ultrasonic system Automatic frequency tracing
Benchmarking electric eye Panasonic, Japan
PLC Mitsubishi, Japan
electric relay Omron, Japan
Touch Panel WEINVIEW, China Taiwan
Inductive switch SICK, Germany
Air cylinder AirTAC, China Taiwan
Solenoid valve AirTAC, China Taiwan
Motor Ding Hong CN
Partitioner JOUDER, China Taiwan
Frequency converter DELTA, China Taiwan
Stepper motor Leadshine, CN
hx009-001 hx009-002 Toothpaste-Filling-Machine-003 Note: We don't provide emulsifying machine. This machine cannot make filling materials by itself. If you need, we could help you to contact manufacturer of emulsifying machine.

Warranty:

1 year warranty from us (Excludes consumables). We also do repairs after the warranty period (Labour, shipping, and parts fee applied).
