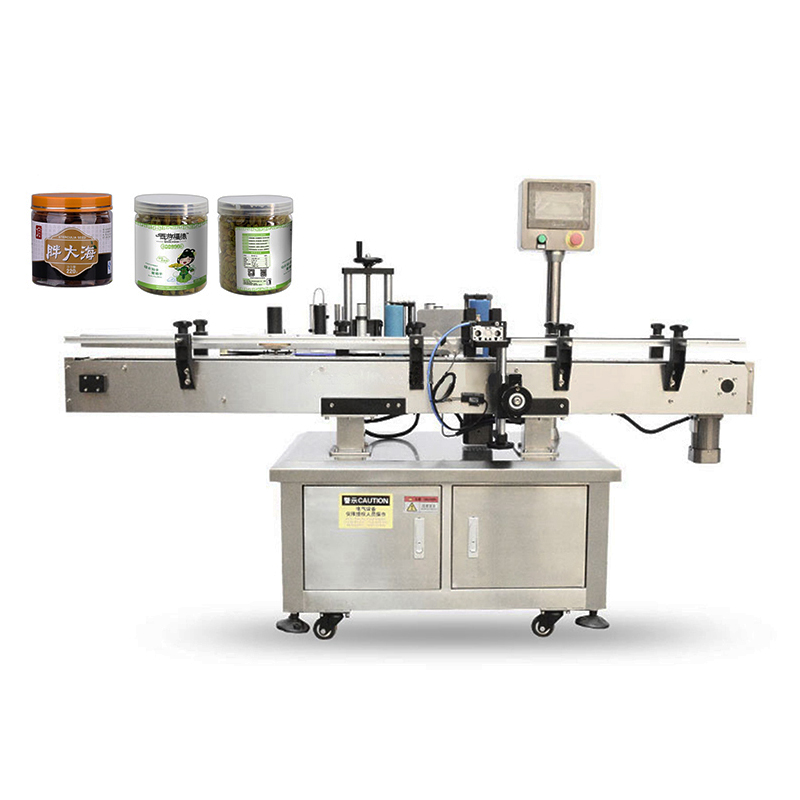

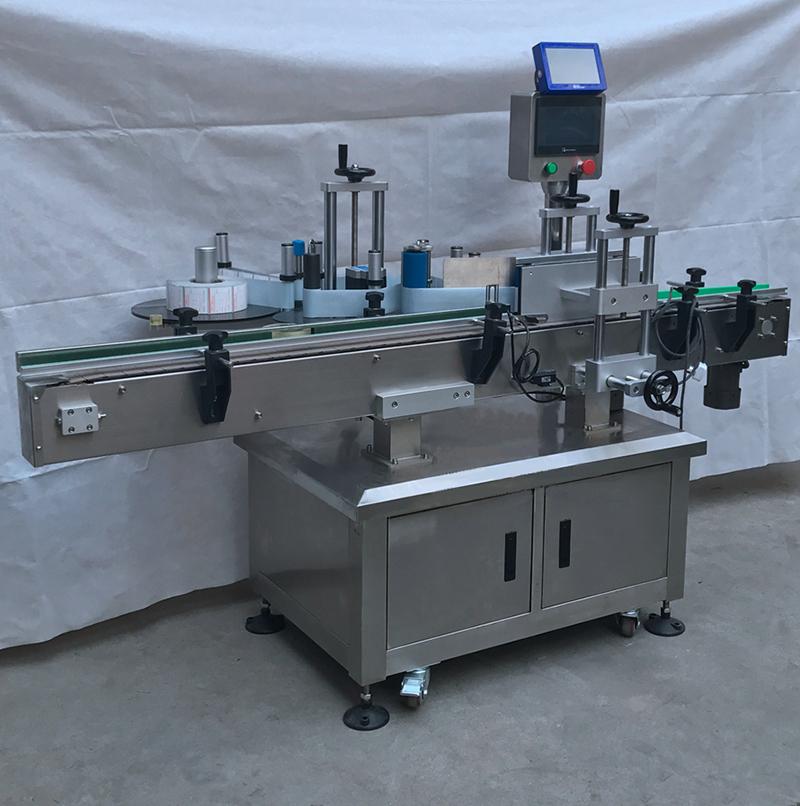

Automatic Round Bottle Belt Labeling Machine
Automatic round bottle belt labeling machine
- Can be applied to the round bottle labeling of industries such as pharmacy, food, daily chemical and the like, and can be pasted with a full – circumference label and a semi – circumferential label.
- Optional automatic rotary bottle uncrambler machine, can be directly connected to the front production line, automatic bottle feeding into the labeling machine, increase efficiency.
- It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging process of bottle and improve production efficiency.
| Voltage (V/Hz) | 110V/220V/380V |
| Label length | 10mm~300mm |
| Label width | 10mm~150mm |
| Bottle diameter | 20mm~φ100mm |
| Bottle height | 20mm~250mm |
| Roll Label outer diameter | 300mm~350mm |
| Roll Label inner diameter | 70mm~75mm |
| Accuracy | ±1mm |
| Label speed | 30~120pcs/min |
| Conveyor speed | 5~25m/min |
| Suitable label type | Adhesive sticker label(Transparent label is available) |
| Working air pressure | 0.4-0.6Mpa |
| Power | 1500W |
| Weight | 200KG |
| Overall dimension | 2000mm×900mm×1500mm |
