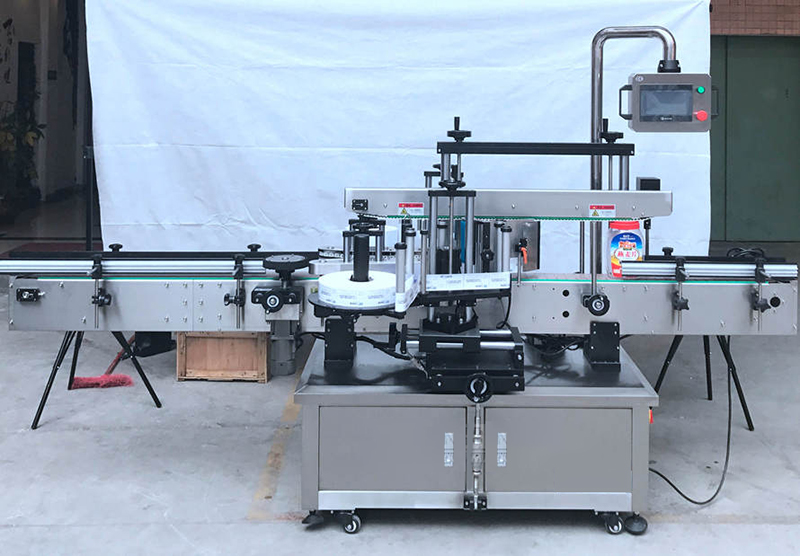

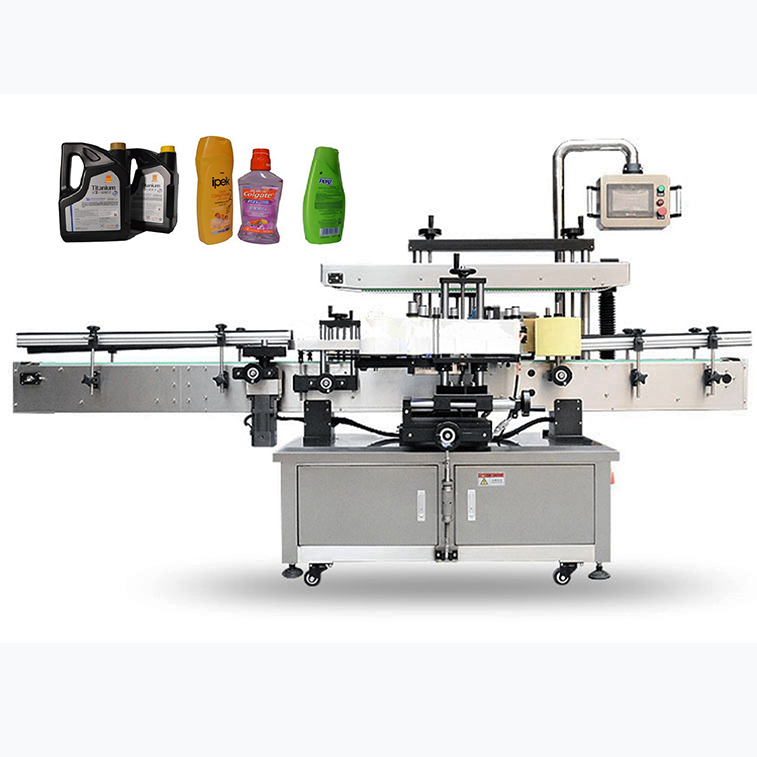

Automatic Double Sides Bottle Labeling Machine

Product Detail


Automatic double sides labeling machine

  1. Suitable for single and double side labeling of flat bottles,round bottle,special shaped bottles and square bottle products in daily , household , medicine , food and other light industry industries.
  2. Optional automatic bottle uncrambler machine, can be directly connected to the front production line, automatic bottle feeding into the labeling machine, increase efficiency
  3. It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging process of bottle and improve production efficiency.
7e118b803e 210b534b7b
Model HX-620
Voltage(V) AC 220/50   110/60
Power(W) 1500
Label Accuracy(mm) ±1.0
The Application of Products (mm) (L)20mm~300mm;(W)20mm~150mm; (H)50mm~350mm
The Application range of label(mm) (L)20mm~200mm;(W) 20mm~150mm
Production Speed(pcs/min) 40-120
Suitable label type Adhesive sticker label(Transparent label is available)
Working air pressure 0.4-0.6Mpa
Roll Label outer diameter 300mm~350mm
Roll Label inner diameter 70mm~75mm
Dimensions(L × W × H) (mm) 2200×1400×1550
Net Weight(kg) 350
c389a47b81 Automatic-screw-capping-machine-006 factory-certificate
