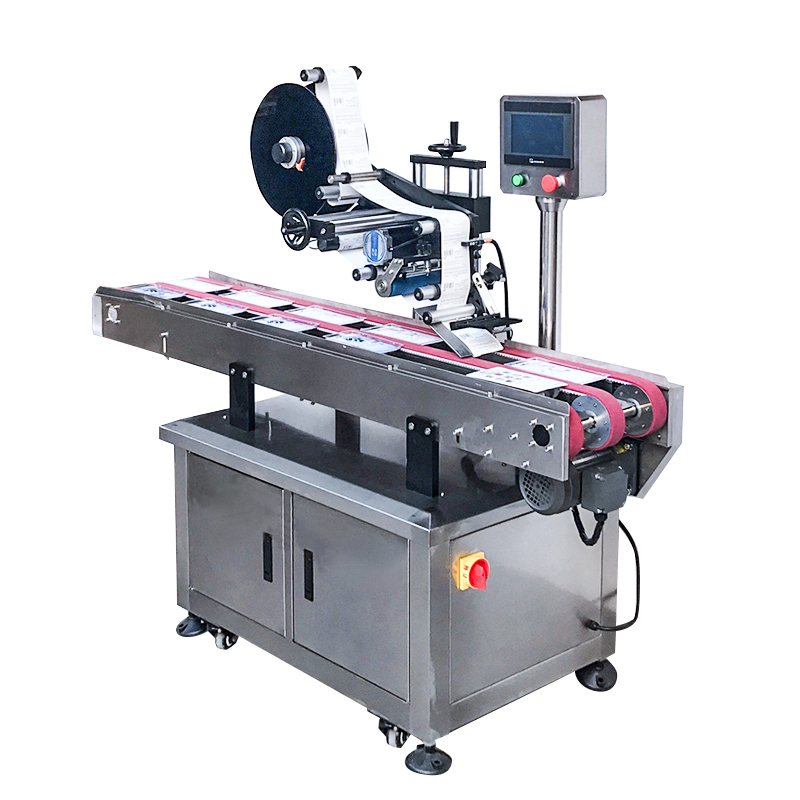

Automatic flat surface top labeling machine

The machine is widely used in cosmetics, food, medicine, daily chemicals, electronics, toys , hardware, plastics and other industries, and can be applied to various plane labeling, and the replacement of the coating mechanism can meet the uneven surface labeling; and the machine has the advantages of high stability, good labeling effect, no air bubbles, no wrinkles and accurate labeling.

Main Features

1. Touch screen operation:

The man-machine interface has the function of operation instruction,and the switching of various functions is simple.

1. Intelligent control:

Automatic optoelectronic tracking, with no marking, no label automatic correction and label automatic detection function, to prevent leakage and label waste.

1. Simple and flexible:

Can be single machine production or pipeline production, production site layout is simple; design 6 degrees of freedom adjustable base, the conversion between different products become simple, save time.

Voltage (V/Hz)	220V 110V
Application of product size	L：60mm～400mm W：40mm～200mm H：0.2mm～60mm
Application of label size	L：6mm～150mm H：15mm～130mm
Applicable label inner diameter	Ø76mm
Applicable label outer diameter	Ø250mm
Accuracy	±1mm
Label speed	60～120pcs/min
Suitable label type	Adhesive sticker label(Transparent label is available)
Working air pressure	0.4-0.6Mpa
Weight	260KG
Overall dimension	2200mm×600mm×1700mm（L×W×H）
