Liquid Bottle Filling Machine

Product Detail

This machine is specially used in food, such as liquor, juice, vinegar,soy sauce, seasoning, vegetable oil, syrup, perfume,mineral water, wine and so on.

Machine Feature:

  • Simple structure in linear type ,easy in installation and maintenance.
  • Drip proof filling design, accurate measurement.
  • Vacuum filling function,greatly reduce the foam of the filling material,keep accurate liquid level.
  • Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
  • The whole machine is made of SS304 material,can meet the requirement of GMP.

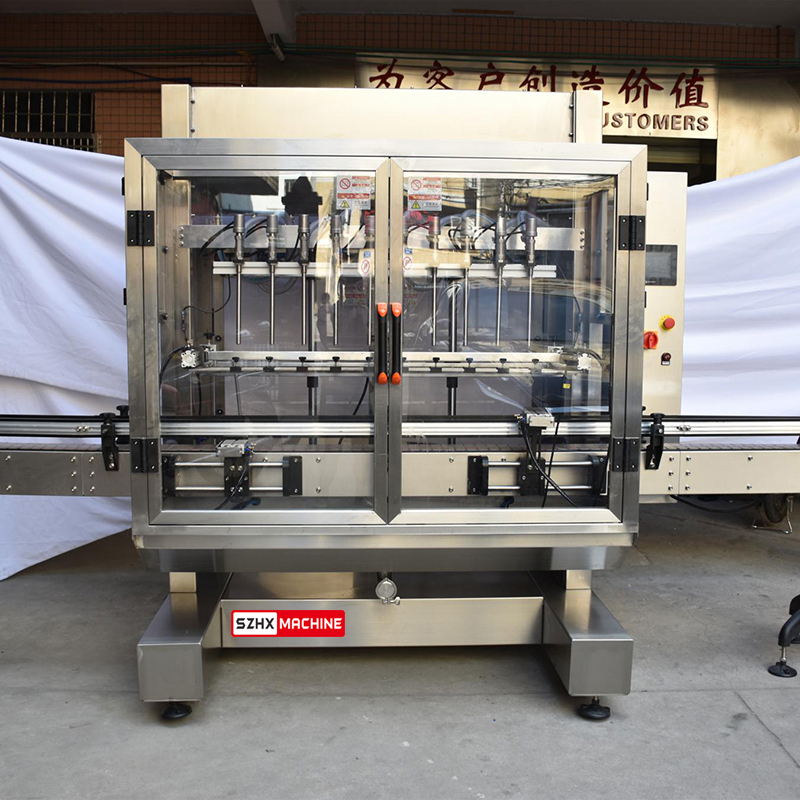

10-head-liquid-filling-machine-1 0bad1d6516
Model HX-10G
Voltage 220V/50Hz(customized)
Power 2000W
Filling range 100-1000ml
Filling head 10(Customizable)
Production speed 1500-2000BPH
Outline dimension 2000*950*2100mm(L×W×H)
Net weight About550kg

Filling Machine Introduction

The filling machine is advanced filling equipment controlled by PLC, photoelectric sensor, and pneumatic system. This model is special designed for food products, such as: white wine, soy sauce, vinegar, condiments, vegetable oil, mineral water and other edible liquids, as well as pesticides and chemical liquids. The machine could fill accurately with no bubbles and no dripping. Suitable for filling 100-1000ml (filling range could be made based on your requirements) for various bottle types. Machine is suitable for the filling different sizes of containers and could easily switch between different filling range within a few minutes, with short filling cycle, and high production capacity. No need to add or change part when adjust between different filling volume. You could choose the filling nozzles based on the filling speed you prefer. Colorful Touch screen, you could view the production status, operating procedures and filling methods, etc, directly, convenient for operation and maintenance. Each filling head is equipped with bottle clamping device to ensure accurate filling position. Note: The filling volume range and speed could be designed based on customer’s requirements. b58e1f195c Automatic-screw-capping-machine-006 Toothpaste-Filling-Machine-003
