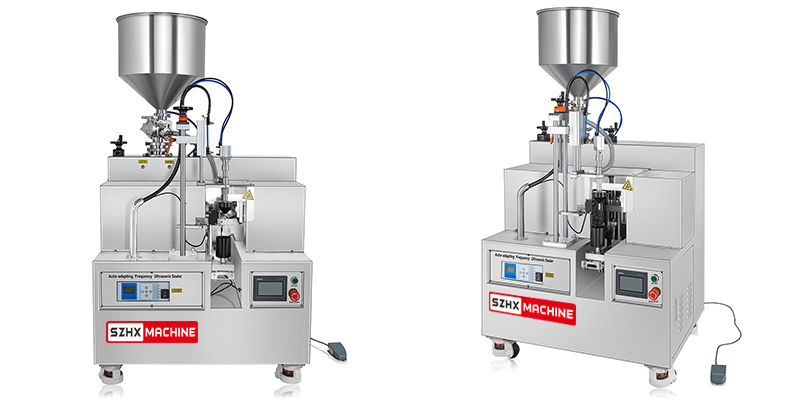

Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
Manually feed the tube, press start button, machine could automatically identify the registration mark, filling, sealing with coding, end trimming.
Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
PLC with touch screen control system, providing friendly operation experience.

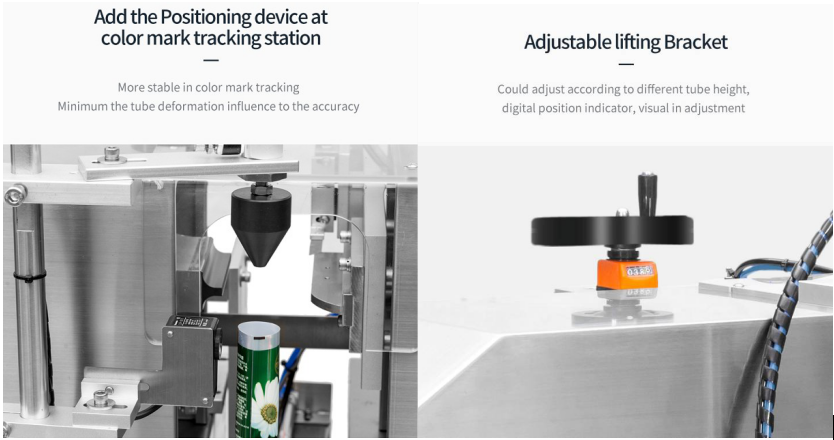

“Panasonic” high sensitive sensor with stepping motor, could track the registration mark precisely.
Equipped with filler for both liquid and cream, with filling tolerance within ±1%.
Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.
Application:
Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.
Machine Parameters
Model
HX-002
Frequency
20kHz
Power
2600W
Power supply
AC220V/110V
Filling Range
A.6-60ml B.10-120ml
C.25-250ml D.50-500ml
Filling accuracy
±1g
Capacity
10-15pcs/min
Tube diameter
13-50mm
Tube height
50-210mm
Working pressure
0.5 MPa
Size
L1000*780*1550mm
N.W/G.W
130kgs
Main part list:
Ultrasonic system
Automatic frequency tracing
Benchmarking electric eye
Panasonic, Japan
PLC screen
Coolmay, CN
electric relay
Omron, Japan
Inductive switch
SICK, Germany
Air cylinder
AirTAC, China Taiwan
Solenoid valve
AirTAC, China Taiwan
Stepper motor
JMK motion, CN
Transducer
CN
Air source processor
AirTAC, China Taiwan
Foot switch
DELIXI, CN
Note: We don't provide emulsifying machine. This machine cannot make filling materials by itself. If you need, we could help you to contact manufacturer of emulsifying machine.
Warranty:
1 year warranty from us (Excludes consumables).
We also do repairs after the warranty period (Labour, shipping, and parts fee applied).
