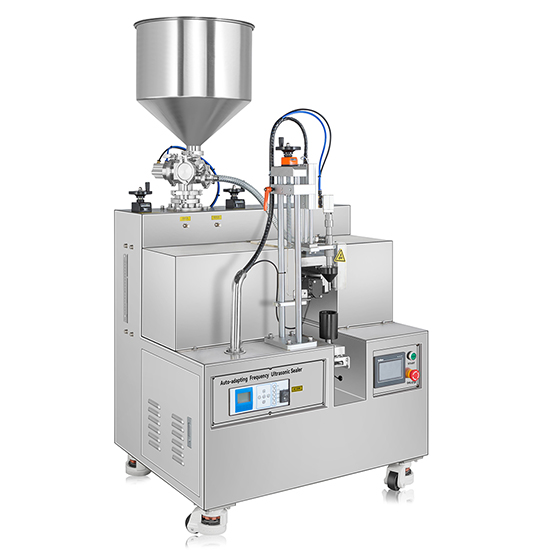

HX-002 Automatic Plastic Tube Filling and Sealing Machine


Product Detail

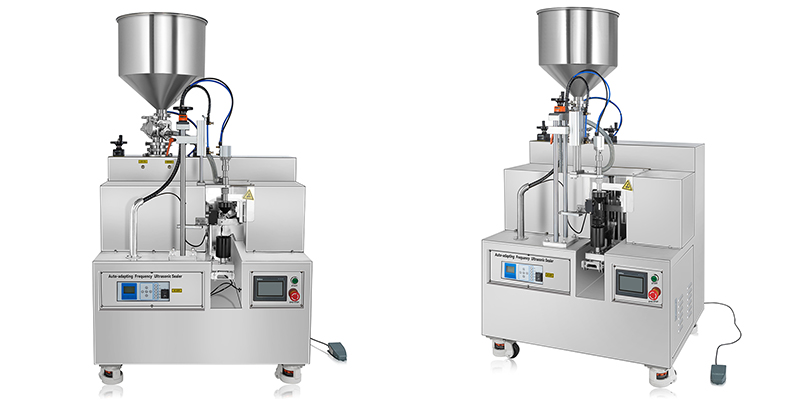

002-800

Features:

  • Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
  • Manually feed the tube, press start button, machine could automatically identify the registration mark, filling, sealing with coding, end trimming.
  • Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
  • PLC with touch screen control system, providing friendly operation experience.
  • “Panasonic” high sensitive sensor with stepping motor, could track the registration mark precisely.
  • Equipped with filler for both liquid and cream, with filling tolerance within ±1%.
  • Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.

Application:

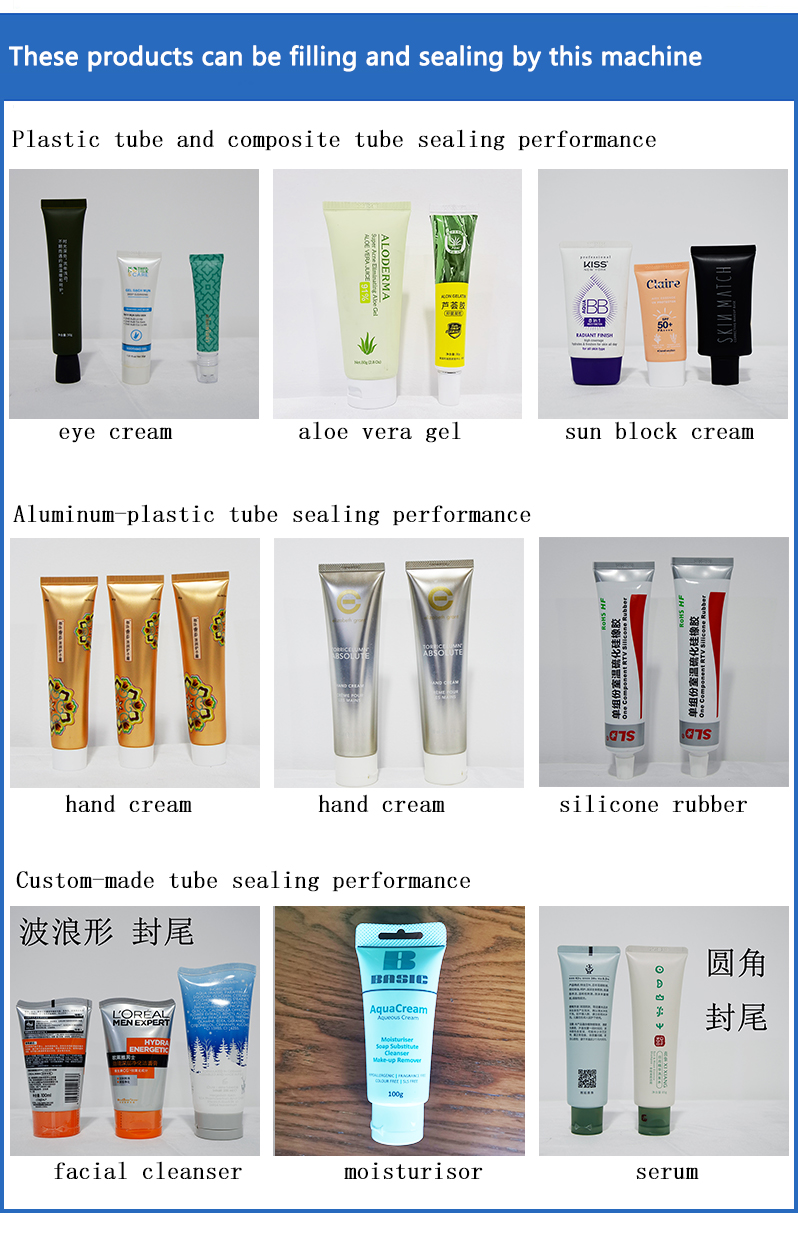

Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing. anli-zhanshi-001
Machine Parameters
Model HX-002
Frequency 20kHz
Power 2600W
Power supply AC220V/110V
Filling Range A.6-60ml B.10-120ml C.25-250ml D.50-500ml
Filling accuracy ±1g
Capacity 10-15pcs/min
Tube diameter 13-50mm
Tube height 50-210mm
Working pressure 0.5 MPa
Size L1000*780*1550mm
N.W/G.W 130kgs

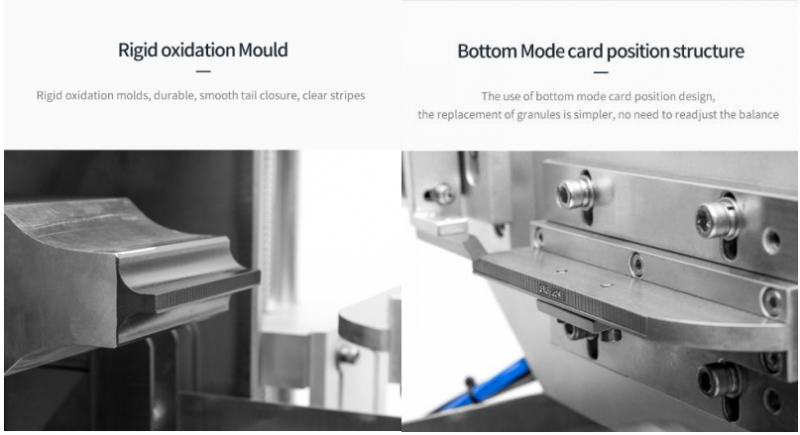

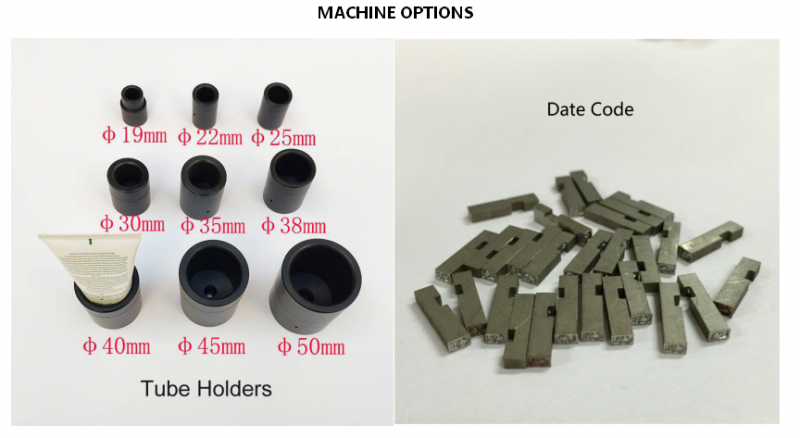

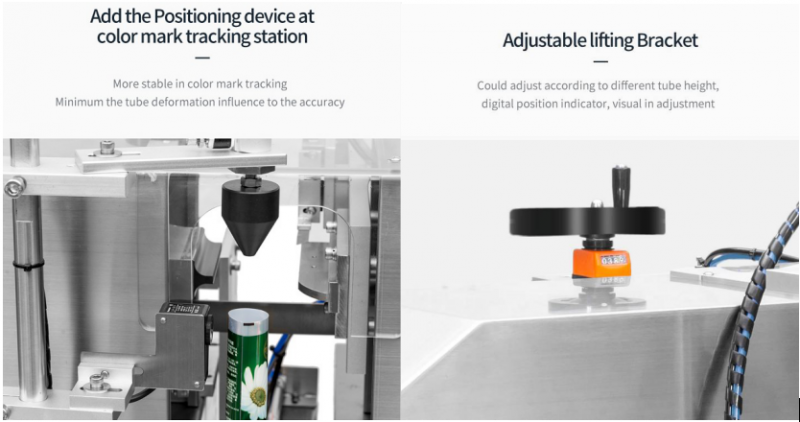

hx002-01 hx002-02 hx002-03
Main part list:
Ultrasonic system Automatic frequency tracing
Benchmarking electric eye Panasonic, Japan
PLC screen Coolmay, CN
electric relay Omron, Japan
Inductive switch SICK, Germany
Air cylinder AirTAC, China Taiwan
Solenoid valve AirTAC, China Taiwan
Stepper motor JMK motion, CN
Transducer CN
Air source processor AirTAC, China Taiwan
Foot switch DELIXI, CN

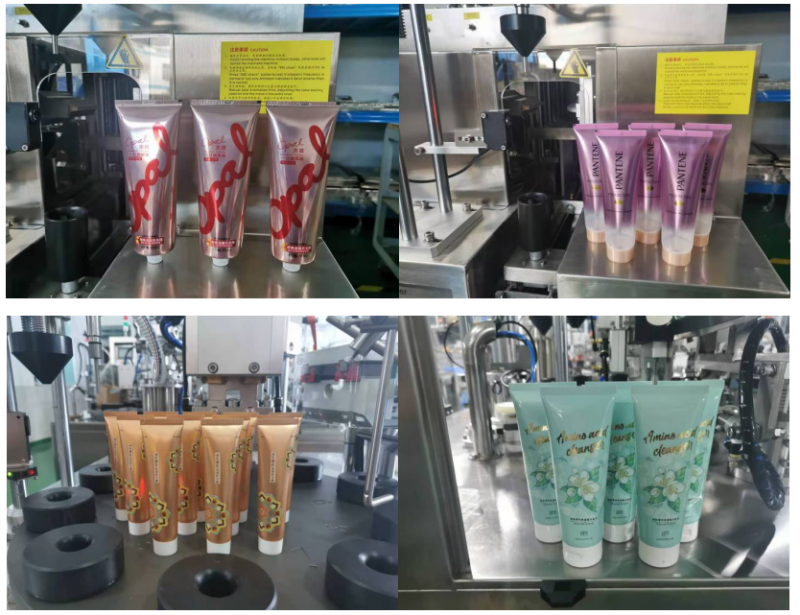

hx002-04 hx002-05 hx002-06 factory-certificate-2 Note: We don't provide emulsifying machine. This machine cannot make filling materials by itself. If you need, we could help you to contact manufacturer of emulsifying machine.

Warranty:

1 year warranty from us (Excludes consumables). We also do repairs after the warranty period (Labour, shipping, and parts fee applied).
