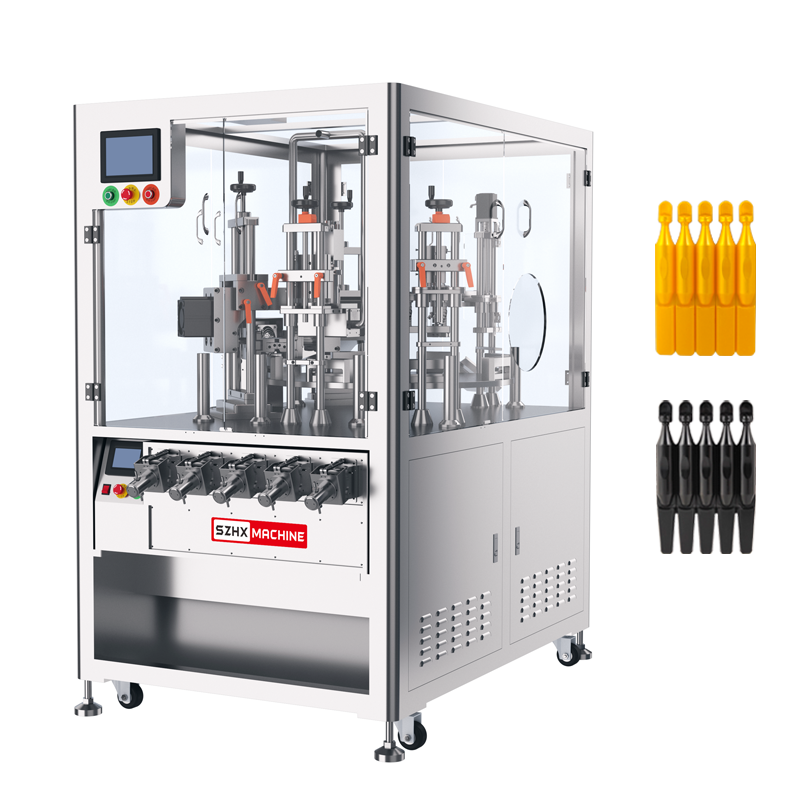

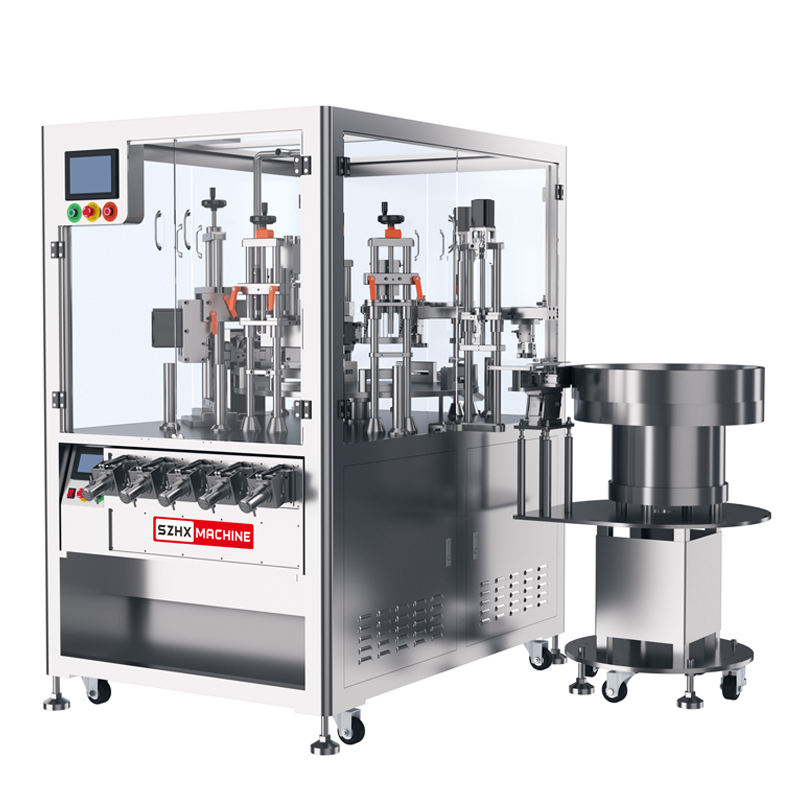

HX-005R1 Automatic Hot-melt Plastic Ampoule Tube Filling and Sealing Machine

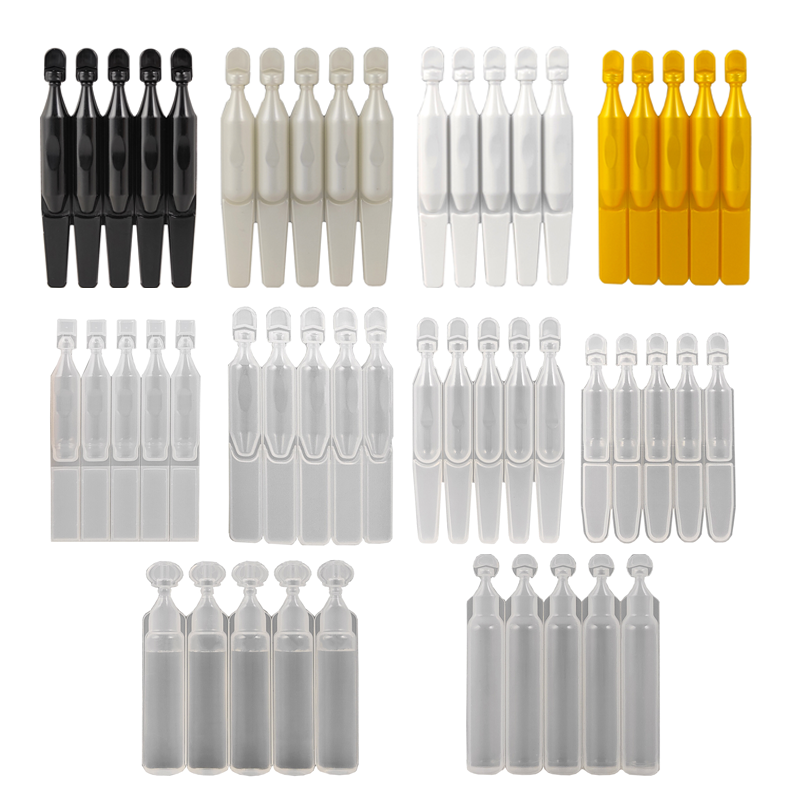

Features: l Machine is specially designed for 5 in 1 tubes, suitable for mass production of 5 in 1 tubes; l Manually tube feeding, automatic tube pressing,automatic heating,automatic filling, sealing, end trimming,and auto finished products grabbing out ; l made of 304 stainless steel, with a beautiful and neat appearance; l Manually tube feeding, automatic filling, sealing, end trimming; l Adopts PLC program control and advanced touch-type human-machine interface; l easy to operate, which can improve production efficiency, reduce labor intensity, and improve packaging quality for enterprises. Aplication: Widely used for food, pharmaceutical, cosmetics and chemical monodose tubes fluid filling and sealing;

Main machine parameters
Model	005R1	Power	7.5KW
Capacity	13-15 strips/min	Voltage	AC220V  1PH 50/60hz
Filling Range	0.2-2.5ml/R	Filling accuracy	±0.05g
Working Pressure	0.5MPa	Sealing Diameter	50-135mm
Sealing Height	50-150mm	Weight	485Kg
Dimension	1800*1150*1800mm

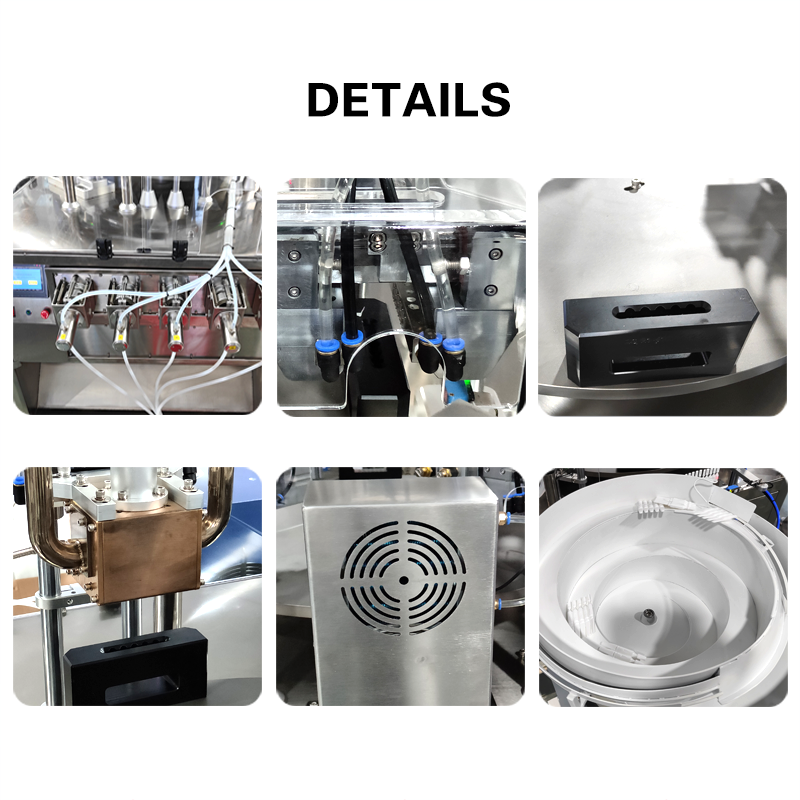

Main parts
1.	PLC	Mitsubishi	2.	Relay	Orman, Japan
3.	HMI	Weinview	4.	Inductive switch	SICK, Germany
5.	Cylinder	AirTAC/xingcheng	6.	Solenoid valve	Airtac，China Taiwan
7.	Motor	Zhongda motor CN	8.	Divider	JOUDER，China Taiwan
9.	Frequency inverter	Haisi	AI	Heater	Switzerland（LEISTER）
