HX-005S1 Serum/Eyedrops Plastic Ampoule Filling and Sealing Machine

HX-005S1 semi-automatic Plastic ampoule tube filling and sealing machine is a high-quality, high-performance liquid/paste filling and sealing packaging machine. The machine features manual tube placement, automatic color mark detection, automatic filling, automatic sealing, automatic tail cutting, and automatic finished product ejection. Utilizing PLC control, a human-machine interface, and photoelectric automatic positioning and tracking, the machine is simple to operate, runs stably, and boasts high production efficiency, making it the preferred equipment in the packaging industry.

Features

* Machine is specially designed for plastic ampouple tubes, suitable for mass production of plastic ampouple tubes

* Manually tube feeding, automatic filling, sealing, end trimming and auto take out.

* Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion andlow rejectrate less than 1%.

*Independent R&D for digital ultrasonic automatic tracking electrical control box, no need manual adjust thefrequency, with power auto compensation function, avoiding the reduction of power after long time use.

*Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life spanthan the normal electrical box.

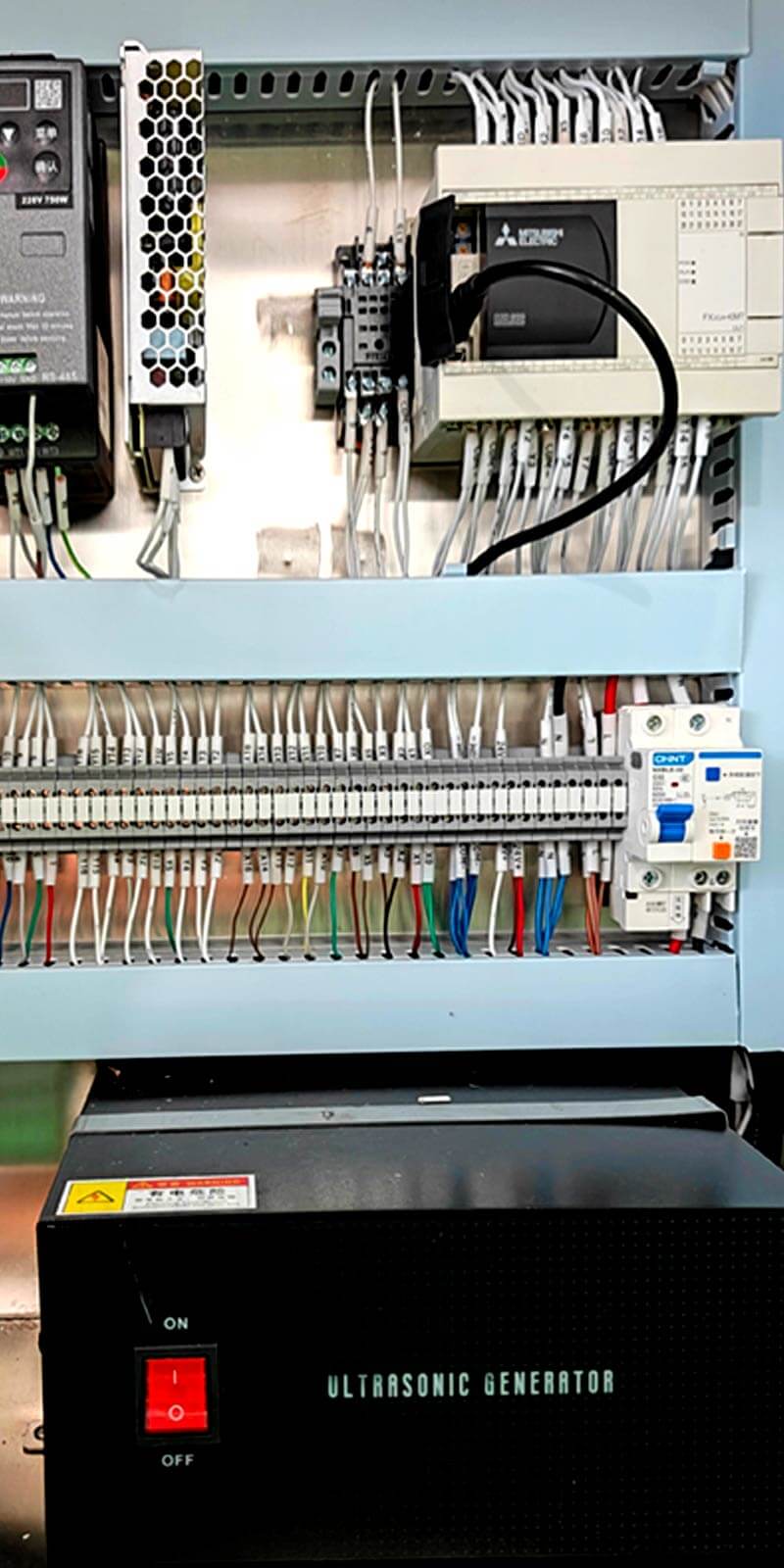

* PLC with touch screen control system, providing friendly operation experience

*Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance

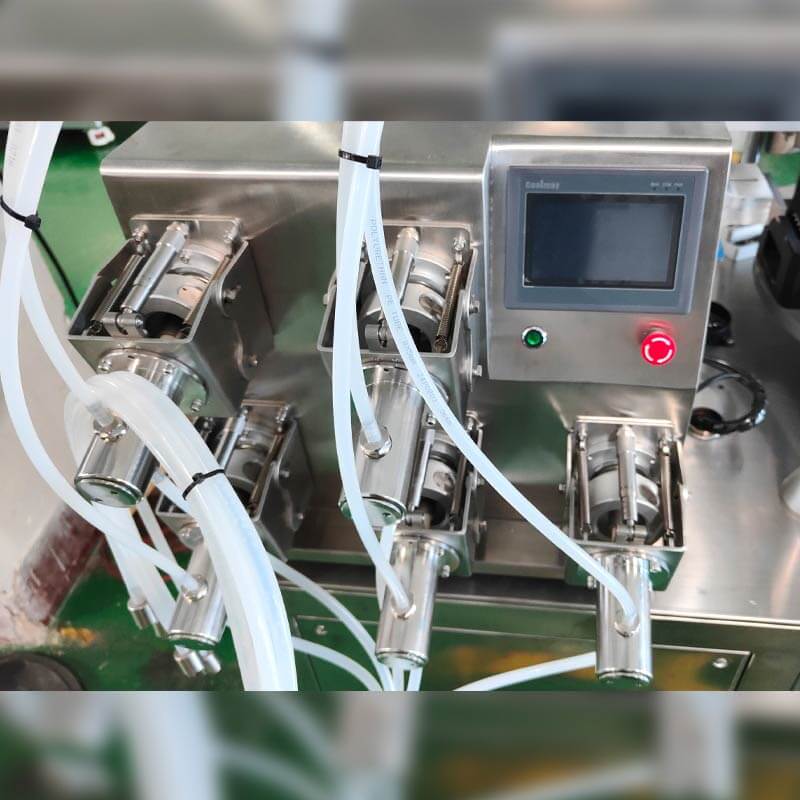

* Standard equipped with ceramic pump filling system, high accuracy filing, and suitable for liguid filling

*No tube, no fil, no tube, no sealfunction,reducing the machine and mould loss

*Cam indexing system could position precisely for six working stations.

Application:

Widely used for cosmetics, pharmaceutical, chemical and food plastic ampouple tubes filing and sealing

Specially for :single-use serum, single-use essence, unit dose Daily Essence, single use daily use serum. one day serum; Single-Use Vials, single-use ampoule; Ophthalmic Lubricant Drops ;Sterile Eyewash）,Sterile Eyewash

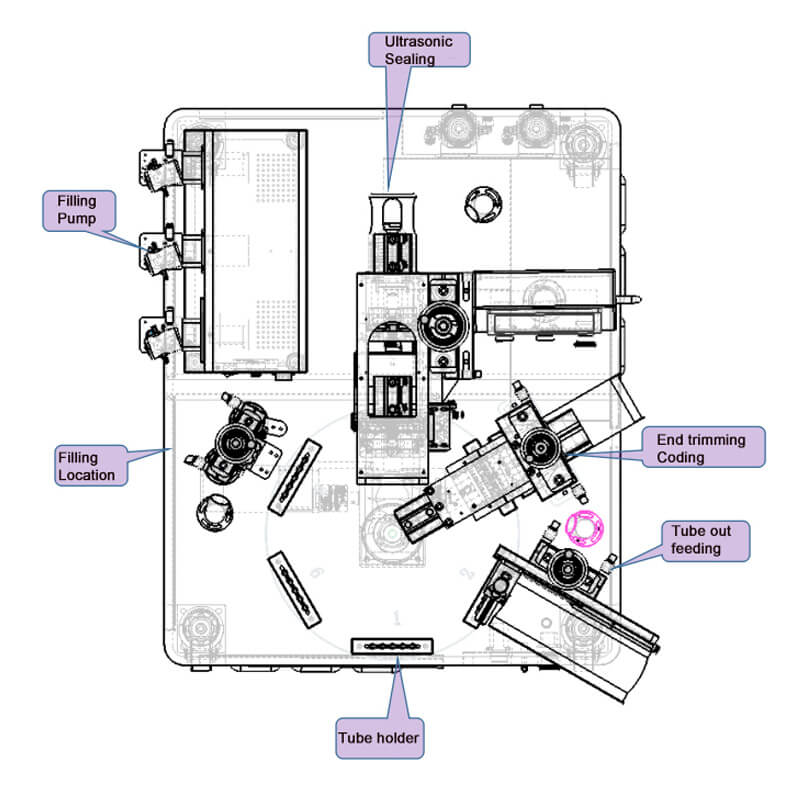

Floor plan layout

Operation process

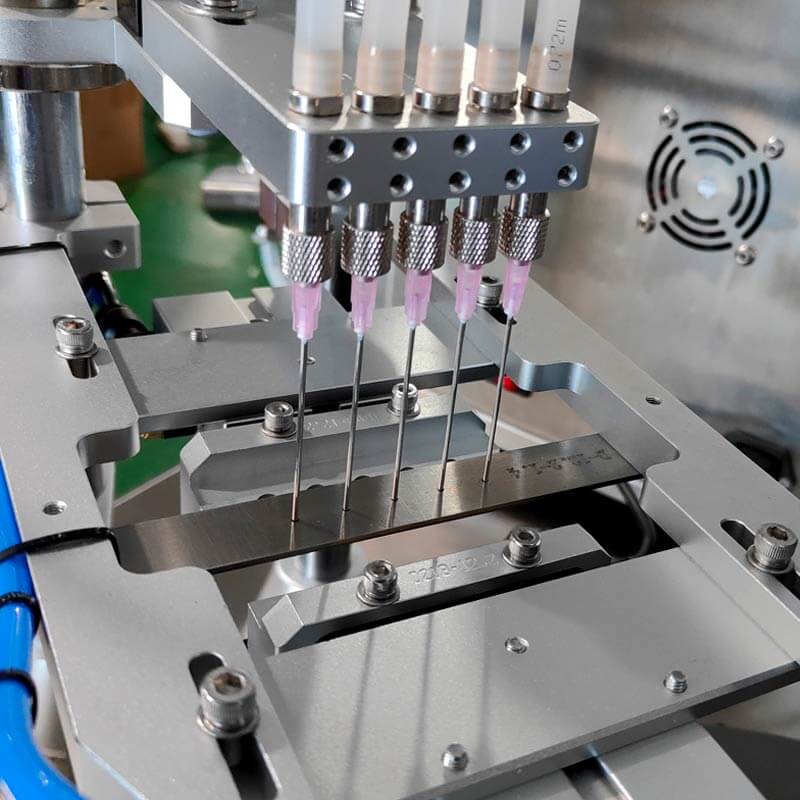

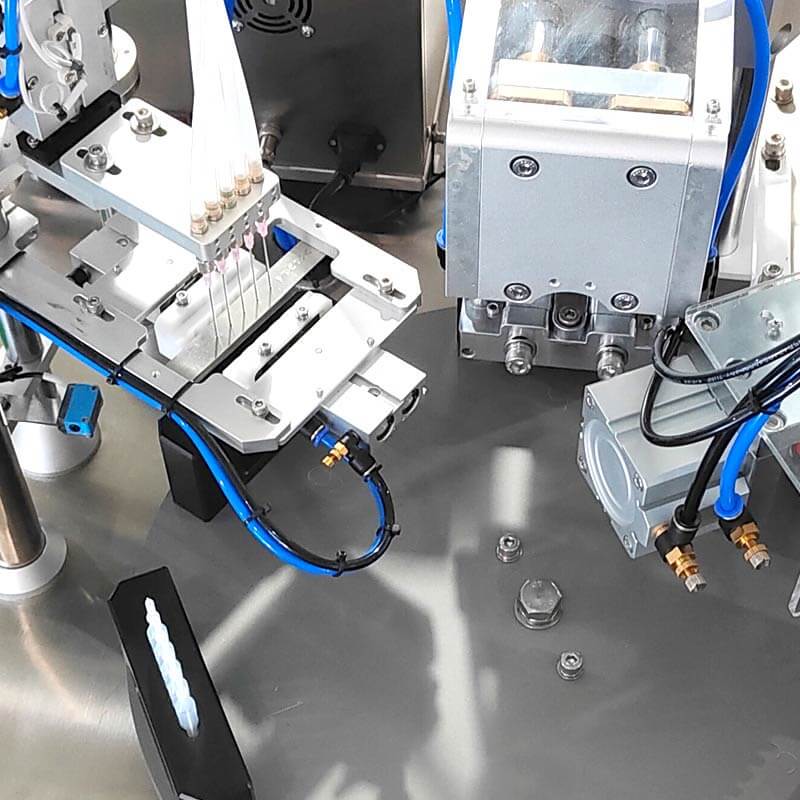

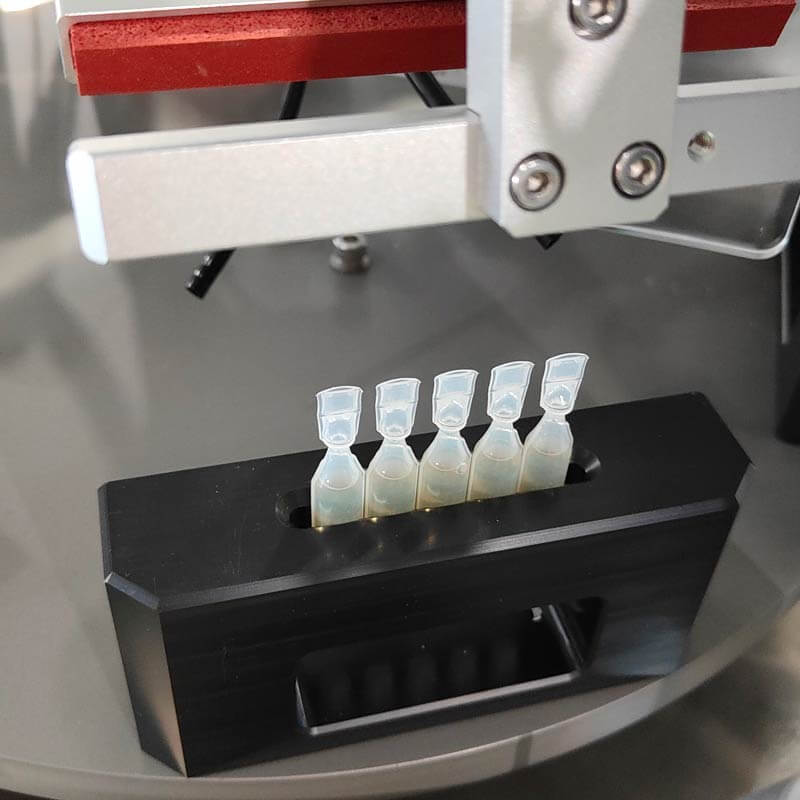

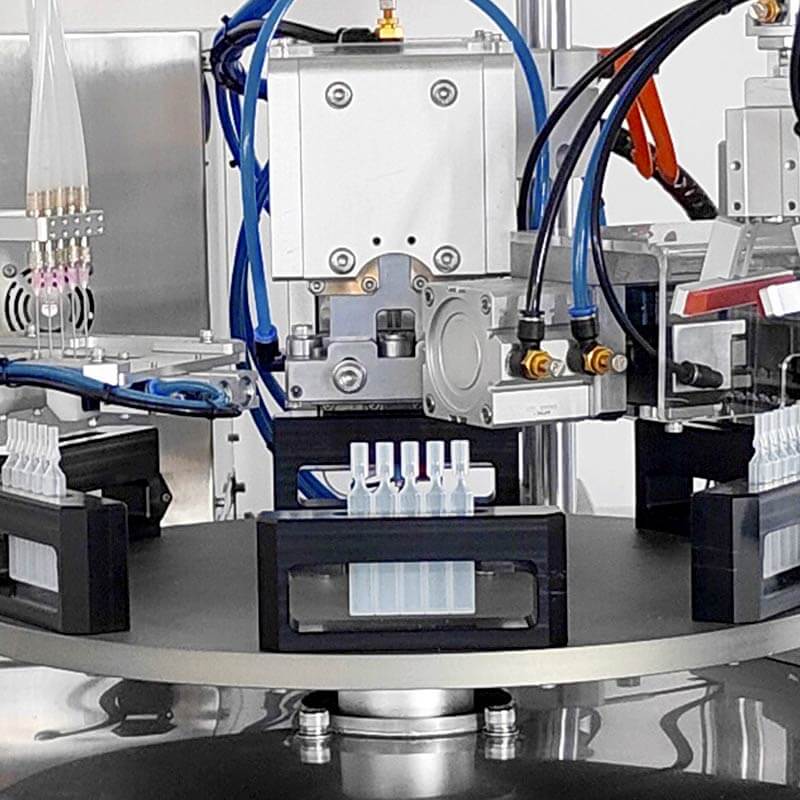

Machine details

Main technical parameters

Model	HX-005S1	Frequency	20KHz
Power	2.6KW	Power supply	AC220V  1PH 50/60hz
Filling range	0.25-2.5 ml /revolution	Filling accuracy	±0.02g
Capacity	13-15strip/min	Radius of Sealing	50-135mm
Height of sealing	50-150mm	Air pressure	0.6MPa
Dimension	L1100*W1150*H1550mm	Weight	300Kgs

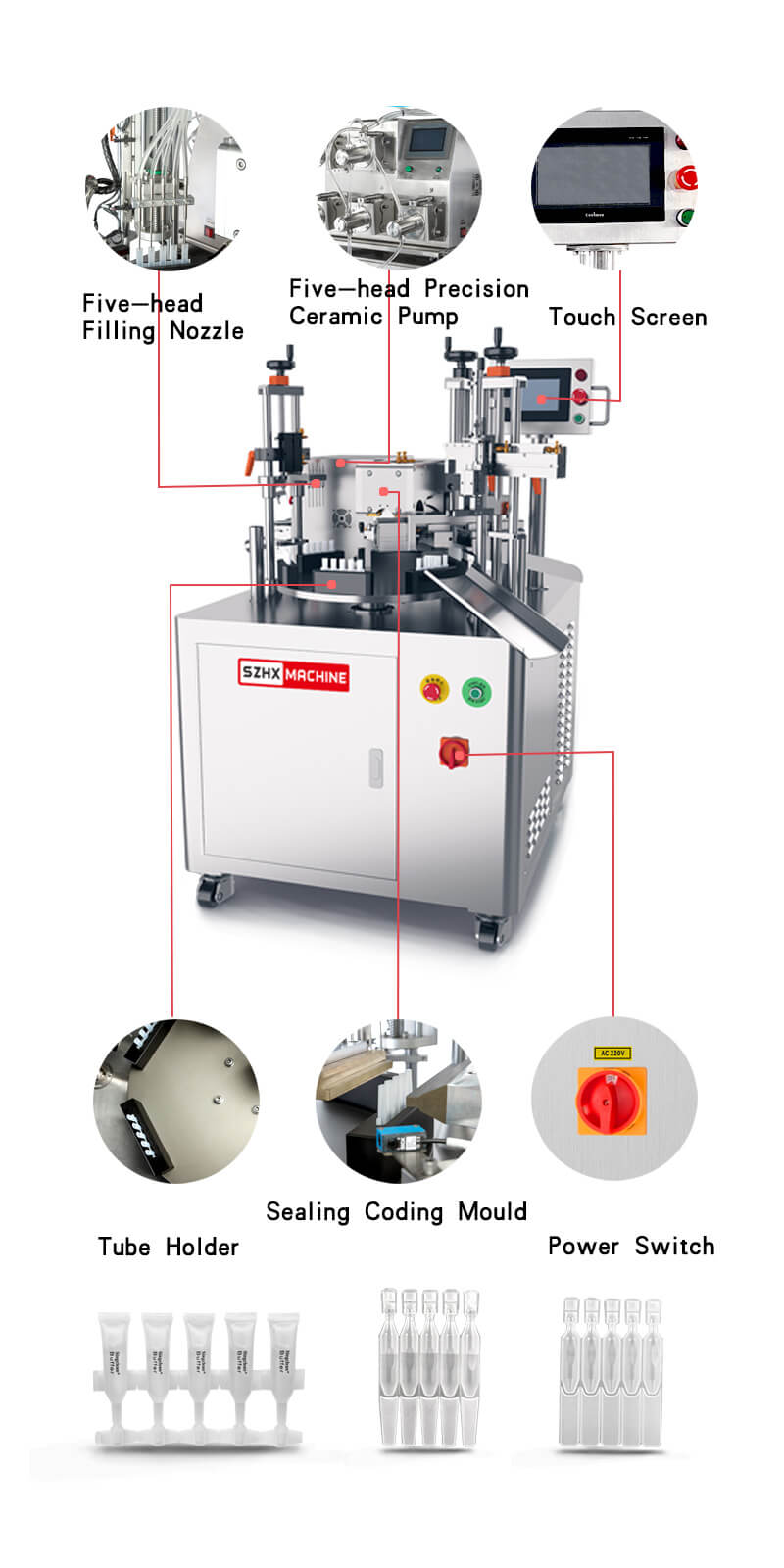

Main Parts Details
