Main Feature

Applicable to: sealing of various plastic double-layer tubes in food, medicine, cosmetics, chemical and other industries. * Titanium alloy screw is used for the connection between the mold and the transducer of this machine. * A light-eye sensor switch is used in this machine. No tube,no seal. * The machine is equipped with C440 stainless steel material cutter.

Machine Structure

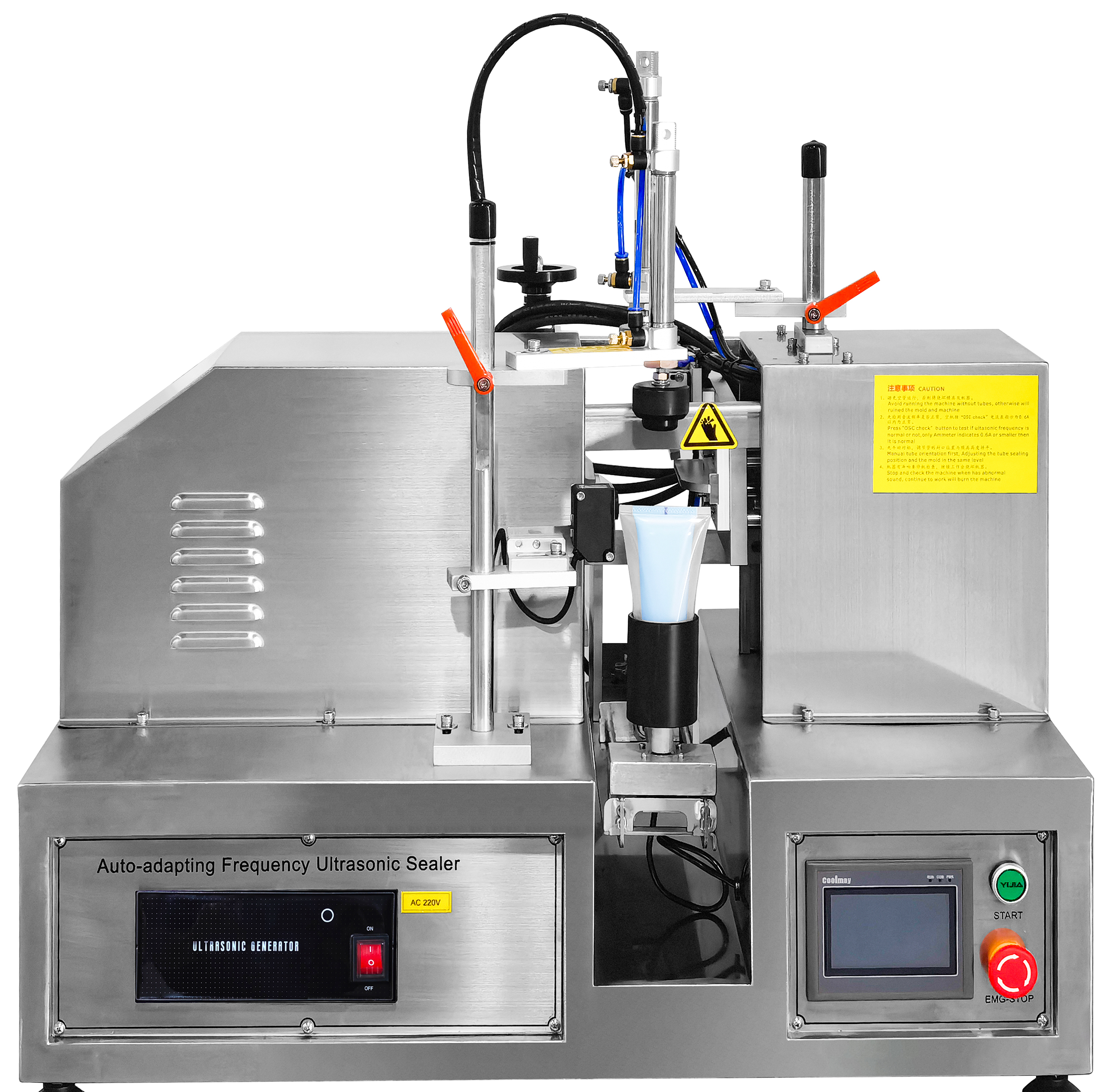

HX-007S ultrasonic tube sealing machine is a high-quality and high-performance tube sealing and packaging machine. It adopts manual tube loading, automatic color mark detection, automatic tail sealing and automatic tail trimming. It adopts PLC control and touch HMI. The operation of this equipment is simple, stable and reliable, which can help enterprises improve production efficiency and reduce labor intensity. It is the first choice for improving packaging grades.

• Main Technical Parameter

1. Power Supply: 220V 50Hz	2. Air Pressure: 0.5MPa
3. Productivity: 10-13pcs/min	4. Height of Sealing: 50-200mm
4. Radius of Sealing: 10-50mm	5. Frequency: 20KHz
6.Power: 2600W	7. Dimension: L850mm*W600mm*H730
8: Weight: 120KG	9. Material: 304 Stainless Steel

• Main Parts Details
