Semi Automaitc Plastic Ampoule Filling and Sealing Machine HX-005

Product Detail

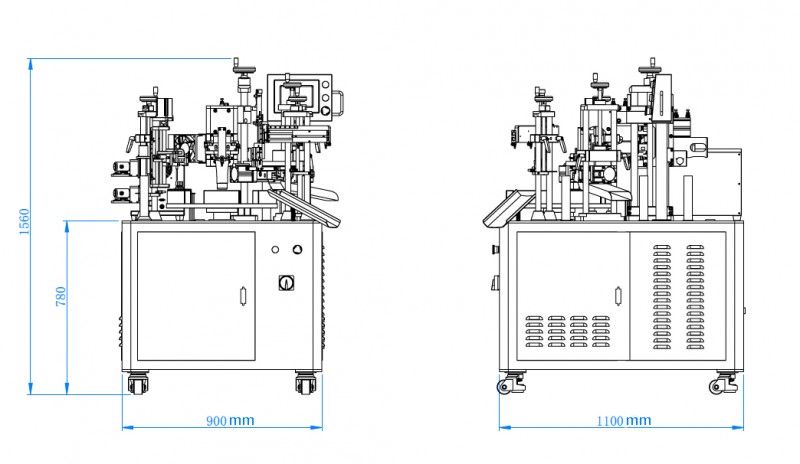

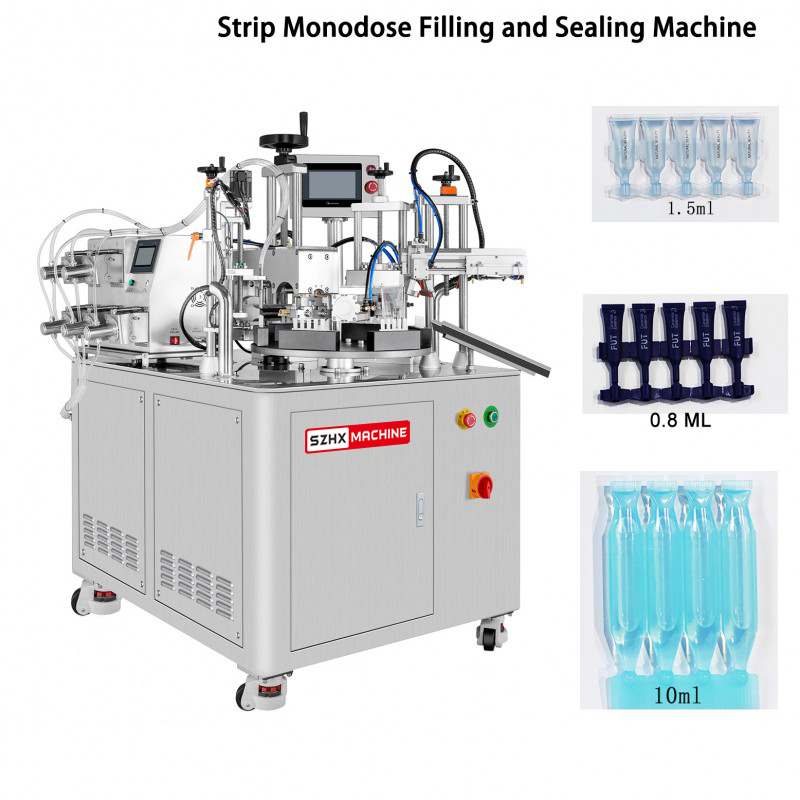

HX005-800x800 HX-005-drawing


  • Machine is specially designed for 5 in 1 tubes, suitable for mass production of 5 in 1 tubes.
  • Manually tube feeding, automatic filling, sealing, end trimming.
  • Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
  • Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
  • PLC with touch screen control system, providing friendly operation experience.
  • Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.
  • Standard equipped with peristaltic pump filling system, high accuracy filling, and suitable for liquid filling.
  • No tube, no fill, no tube, no seal function, reducing the machine and mould loss.
  • Cam indexing system could position precisely for six working stations.


Widely used for food, pharmaceutical, cosmetics and chemical 5 in 1 tube filling and sealing.


Machine Parameters
Model HX-005
Frequency 20 kHz
Power 2600W
Power supply AC220V/110V
Filling Range 0.3-10ml Rotary Valve Plunger Pump 1-10ml Valveless Plunger Pump
Filling accuracy ±0.05g
Capacity 10-13pcs/min
Tube diameter 50-135mm
Tube height 50-150mm
Working pressure 0.6 MPa
Size L1300*W1300*H1950mm
N.W/G.W 330kgs

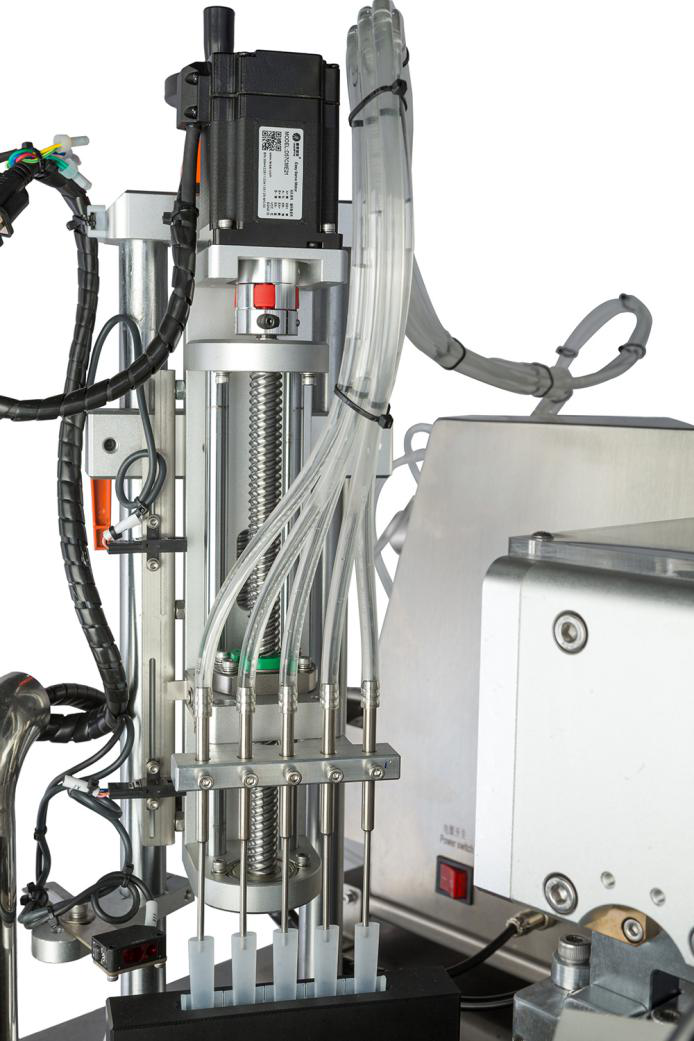

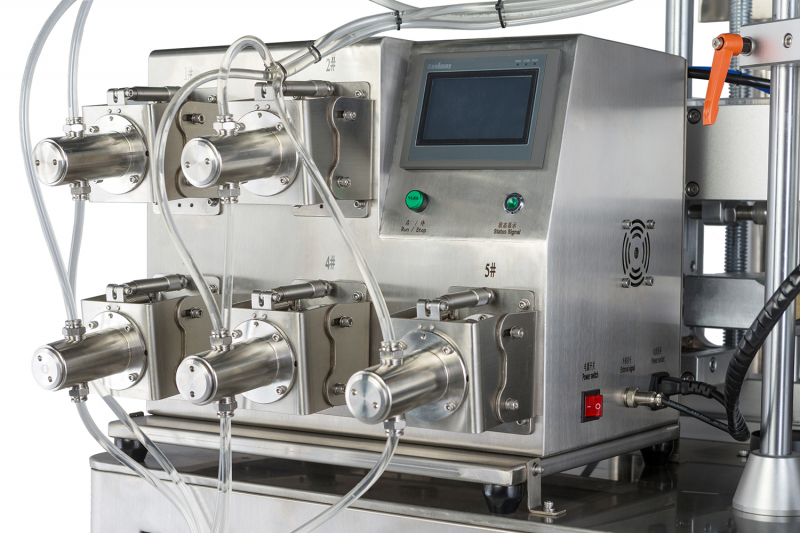

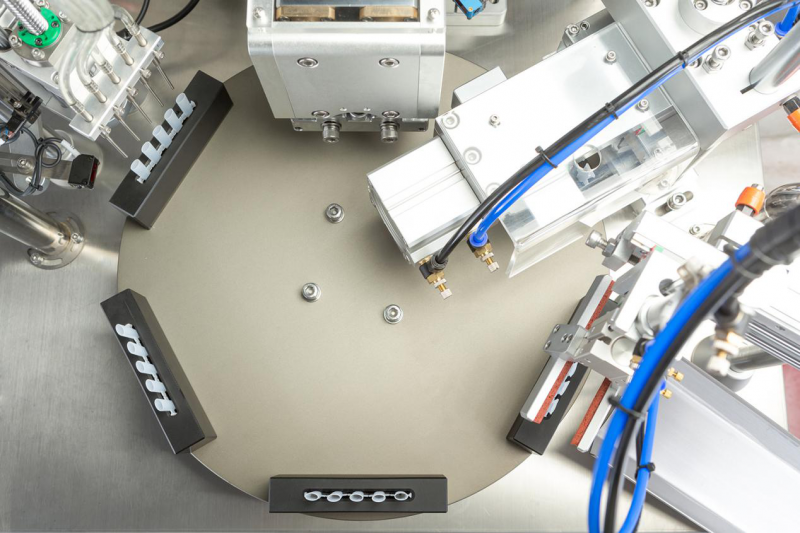

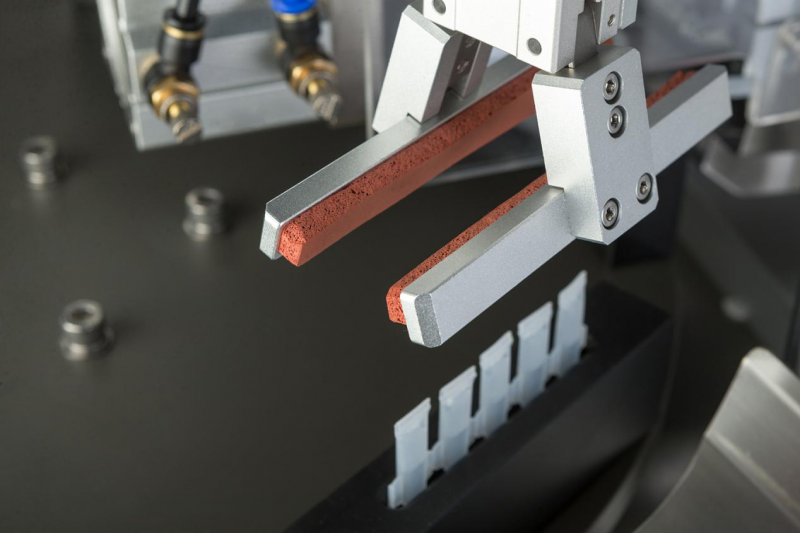

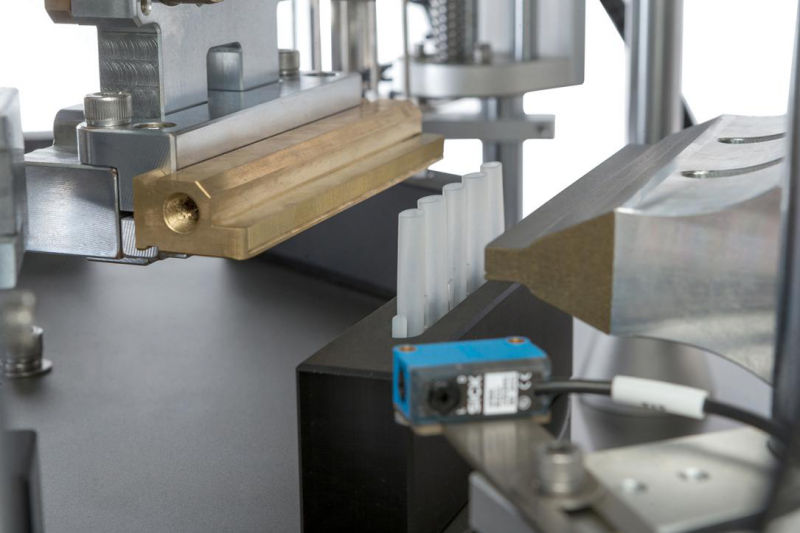

HX-005-001 HX-005-002 HX-005-003 HX-005-004 HX-005-005
Main part list:
Ultrasonic system Automatic frequency tracing
Frequency converter Panasonic, Japan
PLC Mitsubishi, Japan
electric relay Omron, Japan
Touch Panel WEINVIEW, China Taiwan
Inductive switch Omron, Japan
Air cylinder AirTAC, China Taiwan
Solenoid valve AirTAC, China Taiwan
Transducer CN
Motor CN
Partitioner JOUDER, China Taiwan
Air source processor AirTAC, China Taiwan
factory-certificate-2 Note: We don't provide emulsifying machine. This machine cannot make filling materials by itself. If you need, we could help you to contact manufacturer of emulsifying machine.


1 year warranty from us (Excludes consumables). We also do repairs after the warranty period (Labour, shipping, and parts fee applied).
