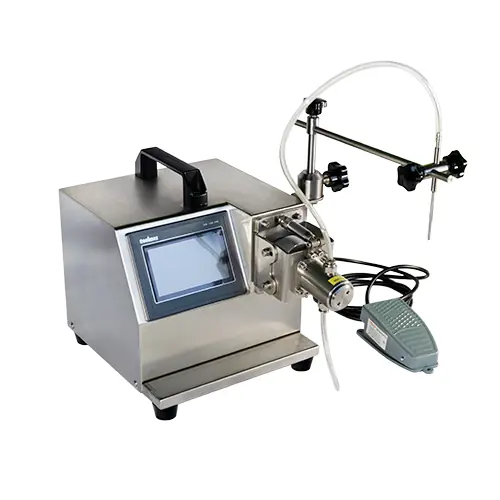

X36-1 Precision Liquid Filling Machine


The X36-1 Precision Liquid Filling Machine is designed for precision liquid filling. It equips valveless ceramic pump and provide high precision liquid filling.

Product Feature

1. Pharmaceutical, food, cosmetic industry's highest hygiene and health standards.
2. Inert chemical stability, acid-base corrosion and high temperature resistance.
3. Hard, abrasion resistant, particle release is extremely small, long service life.
4. Dense material, water absorption as low as zero; very high surface finish, minimal friction; therefore minimal residual materials.
5. Thermal expansion coefficient is small, piston clearance fit more, filling accuracy can be achieved online cleaning and sterilization.

Scope of Application

1. Laboratories, universities, pharmaceutical factories, hospitals, cosmetics industry.
2. Widely applied to precision quantitative filling of industries such as medicine, pharmacy, food, chemistry, cosmetics, etc.
3. Used for precision quantitative filling of liquids such as blood, biological reagent, oral liquid, injection liquid, senior cosmetics, fragrance, fungicide, etc.
4. Used for precision quantitative filling of all kinds of acid and alkali corrosive liquid.

Technical Parameter
Model	X05-1	X07-1	X10-1	X13-1	X15-1	X22-1	X25-1	X36-1
Power Supply	AC220V 50/60Hz 80W
Material	Plunger, Plump Cavity Sleeve(Alumina Zirconia)
Filling Accuracy	±≤1%		±≤0.5%		±≤0.5%		±≤0.5%
Rpm	0-600		0-500		0-200		0-150
Placement Angle	15°		20°		20°		20°
Throughput Pressure	0.6MPa		0.5MPa		0.5MPa		0.5MPa
Suction Height	4mm (The data measurement of this product uses water as the medium)
Max Throughput(ml/min)	100	180	420	750	870	1200	1800	3600
Throughput/rev(ml/rev)	0.14	0.3	0.7	1.6	2.9	6	12	25
Filling Speed	0-50times/min
Weight	3.5kgs		4.5kgs		8.5kgs		16.5kgs
Size(mm)	300*140*230		325*140*230		390*155*265		490*205*300
