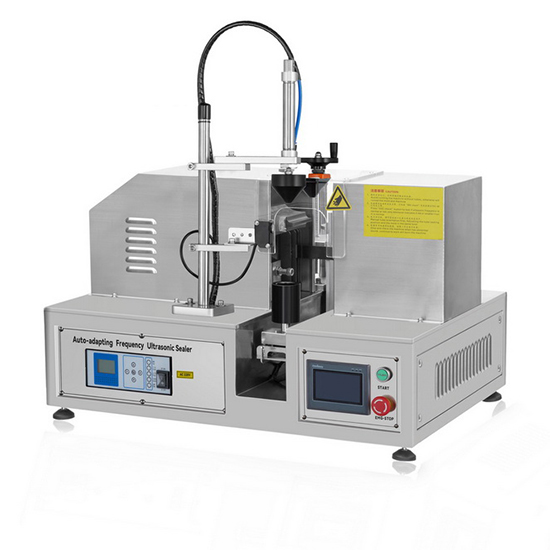

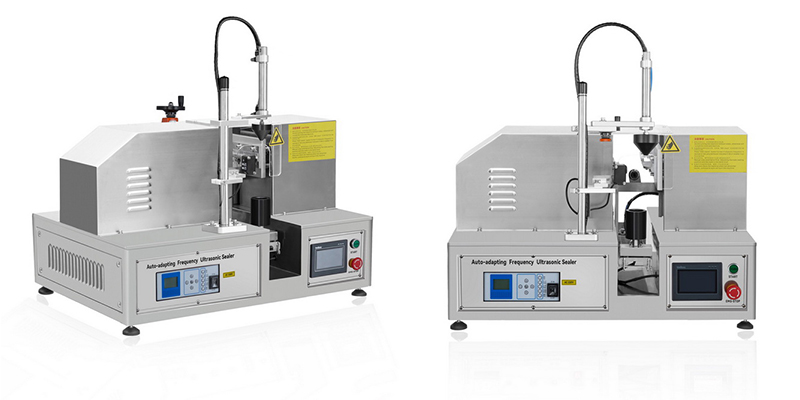

HX-007 Automatic Ultrasonic Plastic Tube Sealing Machine

Product Detail



  • Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
  • Manually feed the tube, press start button, machine could automatically identify the registration mark, sealing (with coding), end trimming.
  • Independent R &D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
  • PLC with touch screen control system, providing friendly operation experience.
  • Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.
  • “Panasonic” high sensitive sensor with stepping motor, could track the registration mark precisely.
  • Table top design, practical and compact.


Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.
 Machine Parameters
 Model  HX-007
 Frequency  20kHz
 Power  2600W
 Power supply  AC220V/110V
 Filling Range  /
 Filling accuracy  /
 Capacity  10-15pcs/min
 Tube diameter  13-50mm
 Tube height  50-210mm
 Working pressure  0.5 MPa
 Size  L850mm*W600mm*H730mm
 N.W/G.W  75kgs
These products can be produced by this machine
Plastic and Composite Tube
Aluminum-Plastic Tube
Custom-Made Tube
HX-007-drawing hx007-001 hx007-002 hx007-003
 Main part list:
 Ultrasonic system  Automatic frequency tracing
 Benchmarking electric eye  Panasonic, Japan
 PLC screen  Coolmay,CN
 electric relay  Omron, Japan
 Inductive switch  SICK, Germany
 Air cylinder  AirTAC,China Taiwan
 Solenoid valve  AirTAC,China Taiwan
 Stepper motor  JMK motion,CN
 Air source processor  AirTAC,China Taiwan
