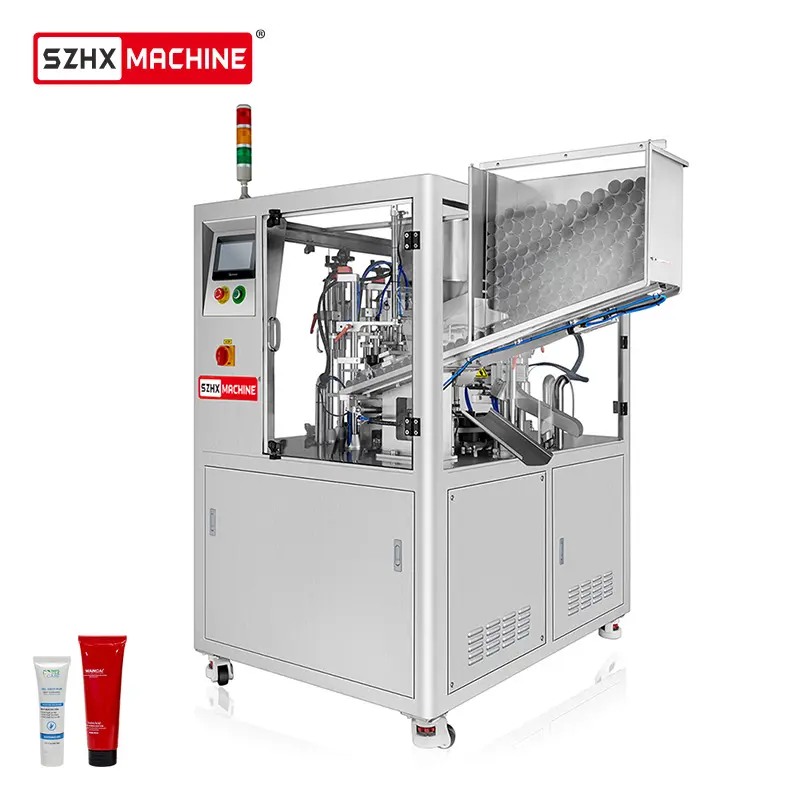

Machine model: HX-009

The automatic tube filling machine is designed for packaging tube with filling, sealing, mark orientation, date code batch number printing, customized trimming features.

Features:

• Machine could automatically finish tube feeding, registration mark identifying, filling, sealing with coding, end trimming, tube out feeding, fully automatic, save labor cost and lower production cost.
• Machine is equipped with safety protection device and overload protection.
• Cam indexing system could position precisely for ten working stations.
• Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
• Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
• PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem and solve immediately.
• Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.
• No tube, no fill, no tube, no seal function, reducing the machine and mould loss.
• Adopts Anti-dripping filling nozzle.
• Low power consumption as ultrasonic parts has high conversion rate of electrical energy to thermal energy.

Read this article for more information.

Application:

Widely used for food, Pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.

Specification

Model	HX-009S	HX-009 (The model you are browsing)	HX-005H
Auto/Semi-Auto	Fully automatic	Fully automatic	Fully automatic
Function	Filling and sealing	Filling and sealing	Filling and sealing
Safety Protection	Safety device equiped Overload protection	Overload protection	Safety device equiped Overload protection
Station	Ten stations (rotary table)	Ten stations (rotary table)	Servo motor driven chain type
Anti-Driping Filling	Anti-dripping Filling nozzle	Anti-dripping Filling nozzle	/
Tube Type	Dual-chamber tube	Single tube	Strip monodose vials tubes
Tube Material	Plastic tube ABL tube	Plastic tube ABL tube	PE Plastic PP Plastic
Color Mark System	Panasonic Color Mark Sensor	Panasonic Color Mark Sensor	/
Tube Outlet Detection	Discharge check alarm system	Discharge check alarm system	/
Fault Alram	Failure warning feature	Failure warning feature	Failure warning feature
Frequency	20 kHz	20 kHz	20 kHz
Power	2.6 KW	2.6 KW	2.6 KW
Power Supply	AC220V/110V	AC220V/110V	AC220V/110V
Filling System	Pneumatic piston pump	Pneumatic piston pump	5 heads Valveless Ceramic Plunger Pump (liquid) 5 heads Rotary Valve Ceramic Plunger Pump (paste)
Filling Range	A. 10-120 ml B. 25-250 ml	A. 6-60 ml B. 10-120 ml C. 25-250 ml D. 50-500 ml	0.3-10 ml Valveless Ceramic Plunger Pump 1-10 ml Rotary Valve Ceramic Plunger Pump
Filling Error	≤±1%	≤±1%	≤±1%
Capacity	8-13 pcs/min	22-28 pcs/min	15-20 monodose/min
Tube Diameter	25-50 mm	13-50 mm	1-7 monodoses/length 140 mm
Tube Height	50-210 mm	50-250 mm	50-120 mm
Working Pressure	0.6 MPa	0.6 MPa	0.4 MPa
Air Comsumption	0.48m3/min	0.38m3/min	0.2m3/min
Dimension (mm)	L1850*W1400*H1800	L1590*W1400*H1650	L1300*W1300*H1950
N.W/G.W	504 kgs	424 kgs	420 kgs
Option	Auto refill pump Double jacket heating hopper with stirrer Filling nozzle with air blow 316 stainless steel contact parts Saftey door function	Auto refill pump Double jacket heating hopper with stirrer Filling nozzle with air blow 316 stainless steel contact parts Saftey door function Pressurer hopper Date coding	Finish products conveyor

Automatic Tube Filling Machine, Tube Filling and Sealing Machine Manufacturers, Tube Filler and Sealer Machine

MAIN PART LIST
Ultrasonic System	Automatic Frequency Tracing
Benchmarking Electric Eye	Panasonic, Japan
PLC	Mitsubishi, Japan
Electric Relay	Omron, Japan
Touch Panel	WEINVIEW，China Taiwan
Inductive Switch	SICK, Germany
Air Cylinder	AirTAC，China Taiwan
Solenoid Valve	AirTAC，China Taiwan
Motor	ZhongdaMotor CN
Partitioner	JOUDER，China Taiwan
Frequency Converter	DELTA，China Taiwan
Stepper Motor	Leadshine，CN

Still have question about automatic tube filling machine? Contact us and we will answer your question as soon as possible.

Note: We don't provide emulsifying machine. This machine cannot make filling materials by itself. If you need, we could help you to contact manufacturer of emulsifying machine.

Warranty:

1 year warranty from us (Excludes consumables).

We also do repairs after the warranty period (Labour, shipping, and parts fee applied).
